12v LOOM FOR CLASSIC VESPA WITH 12v PX ENGINE

YOU WILL ALSO NEED A 12v  LIGHT SWITCH,12v  BRAKE LIGHT SWITCH,12v AC HORN,3 PIN REGULATOR,12v BULBS,CDI UNIT

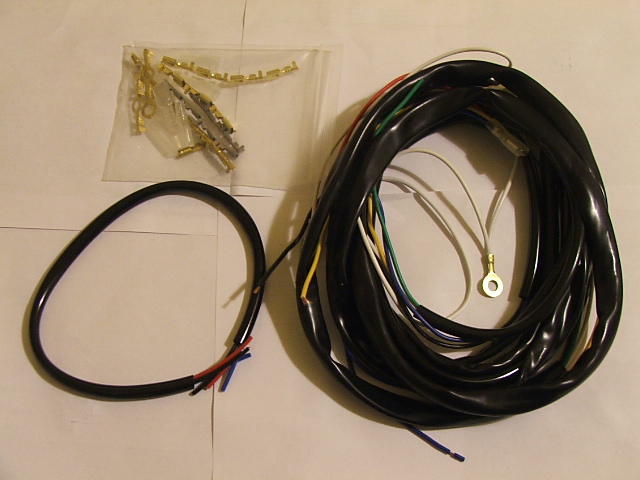

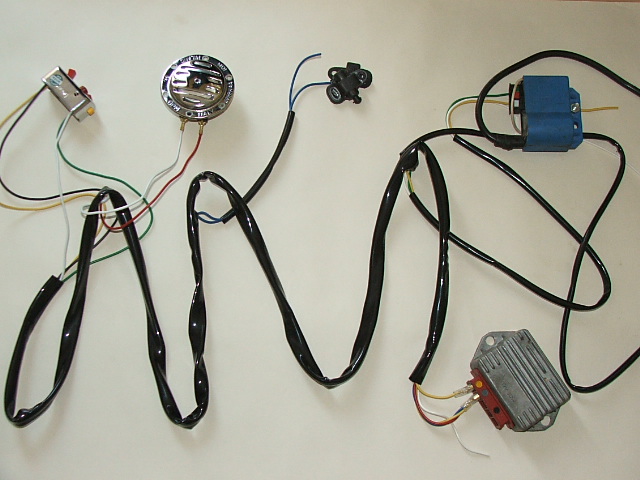

LOOM

12v sptint loom



12v vespa loom sprint rally

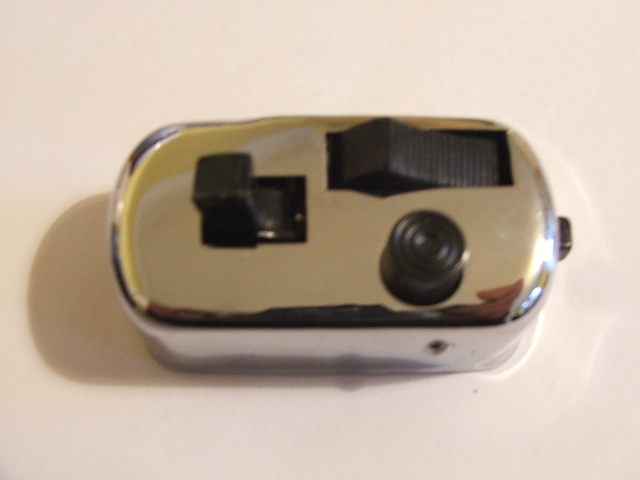

SWITCH (KILL BUTTON ON SIDE)

12v sprint rally light switch

 1;?

3;SIDE LIGHTS OUT AND REAR LIGHT (BLACK)

4;YELLOW POWER IN

6;LOW BEAM OUT

7;HIGH BEAM OUT

8; CUT OUT GREEN

TOP RIGHT HAND SIDE;WHITE HORN OUT (ABOVE 8)

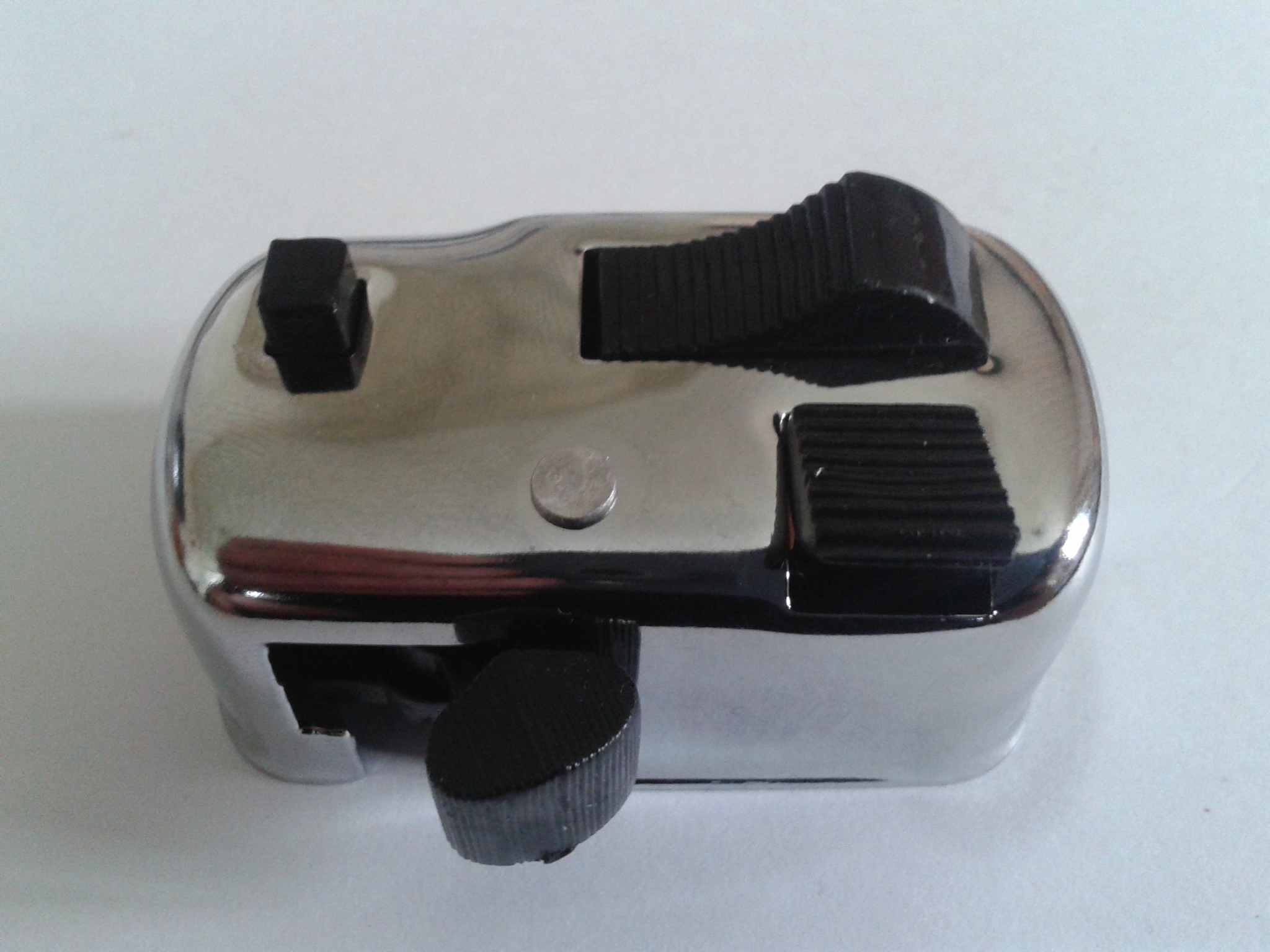

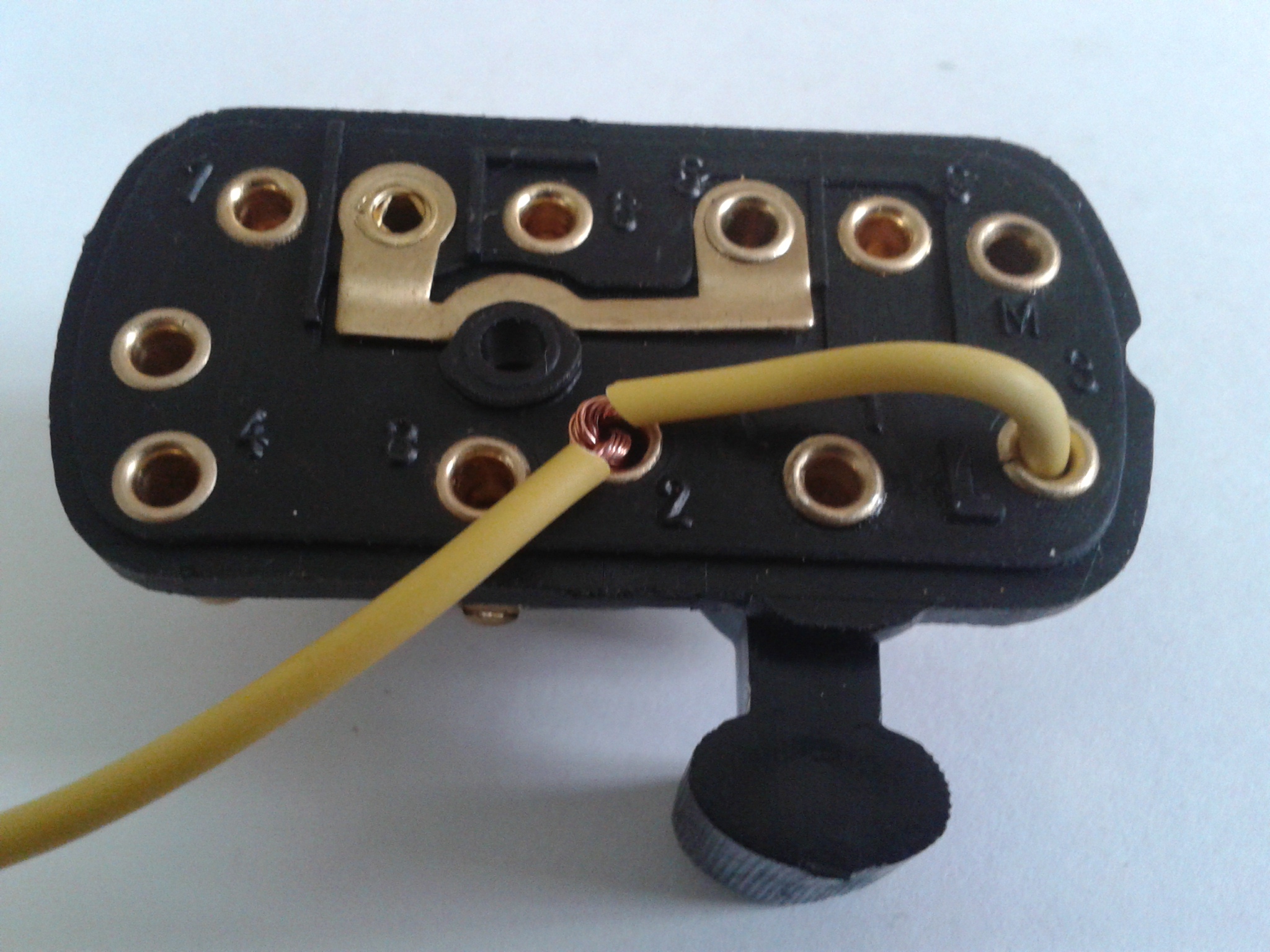

SWITCH (KILL BUTTON ON FRONT)

 1;REAR LIGHT

2 AND 3 (L) POWER IN

4;HORN EARTH

6;LOW BEAM OUT

7;HIGH BEAM OUT

9;SIDE LIGHT

M;TOP RIGHT HAND SIDE;KILL BUTTON (ABOVE 3)



HORN

RED IS POWER IN FROM REGULATOR

WHITE IS EARTH FROM THE LIGHT SWITCH

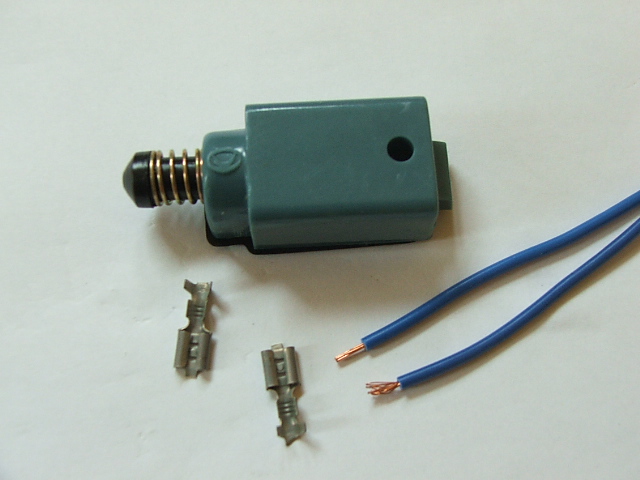

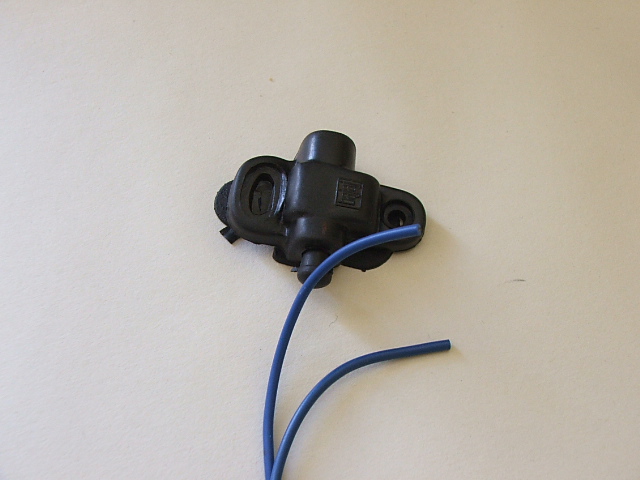

12v BRAKE LIGHT SWITCH (SPRINT/SUPER/VBB/RALLY/GS)

BLUE IS POWER IN FROM REGULATOR

BLUE IS POWER OUT TO REAR LIGHT



12v BRAKE LIGHT SWITCH FOR SMALLFRAME

BLUE IS POWER IN FROM REGULATOR

BLUE IS POWER OUT TO REAR LIGHT

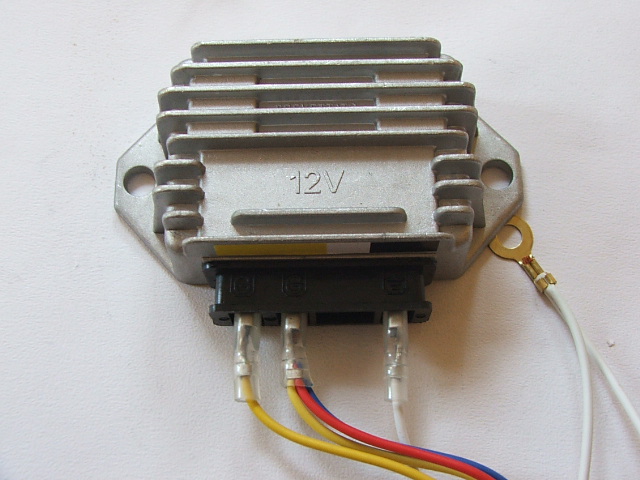

REGULATOR

YELLOW IS POWER IN FROM THE ENGINE ( JOINS BLUE WIRE ON STATOR)

YELLOW,RED AND BLUE ARE POWER OUT (YELLOW TO LIGHT SWITCH,BLUE TO BRAKE LIGHT SWITCH,RED TO HORN)

WHITE IN THE LOOM IS EARTH TO ENGINE OR FRAME

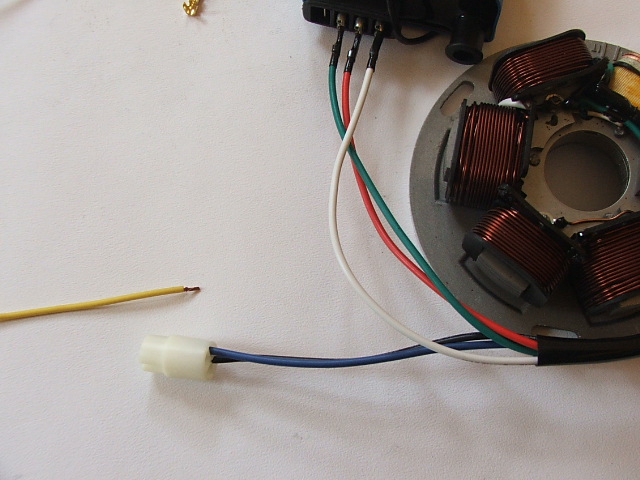

YELLOW WIRE IN LOOM JOINS BLUE LIGHTS POWER WIRE ON PX STATOR

BLACK FROM STATOR IS A EARTH ,NO NEED TO USE

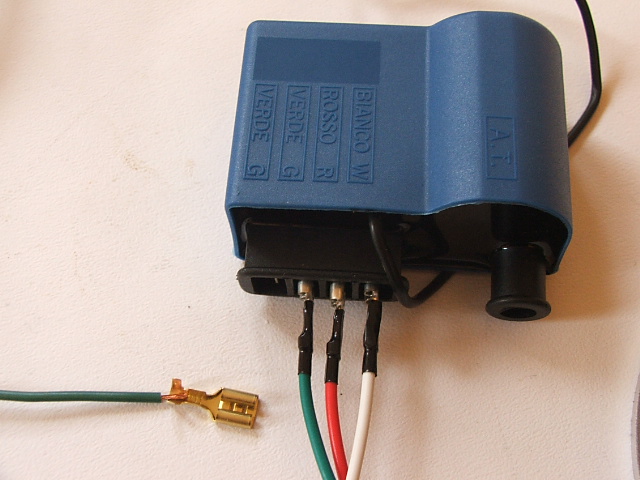

CDI

GREEN IN THE LOOM IS CUT OUT FROM LIGHT SWITCH TO CDI COIL

GREEN,RED AND WHITE ARE FROM THE PX STATOR

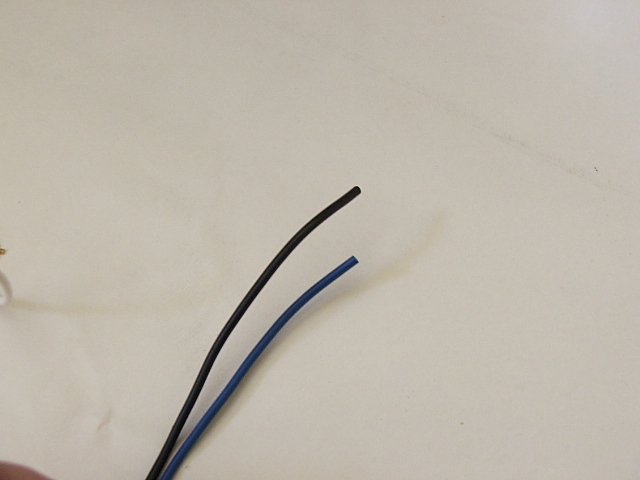

REAR LIGHT

BLACK IS POWER FROM LIGHT SWITCH

BLUE IS POWER FROM BRAKE LIGHT SWITCH

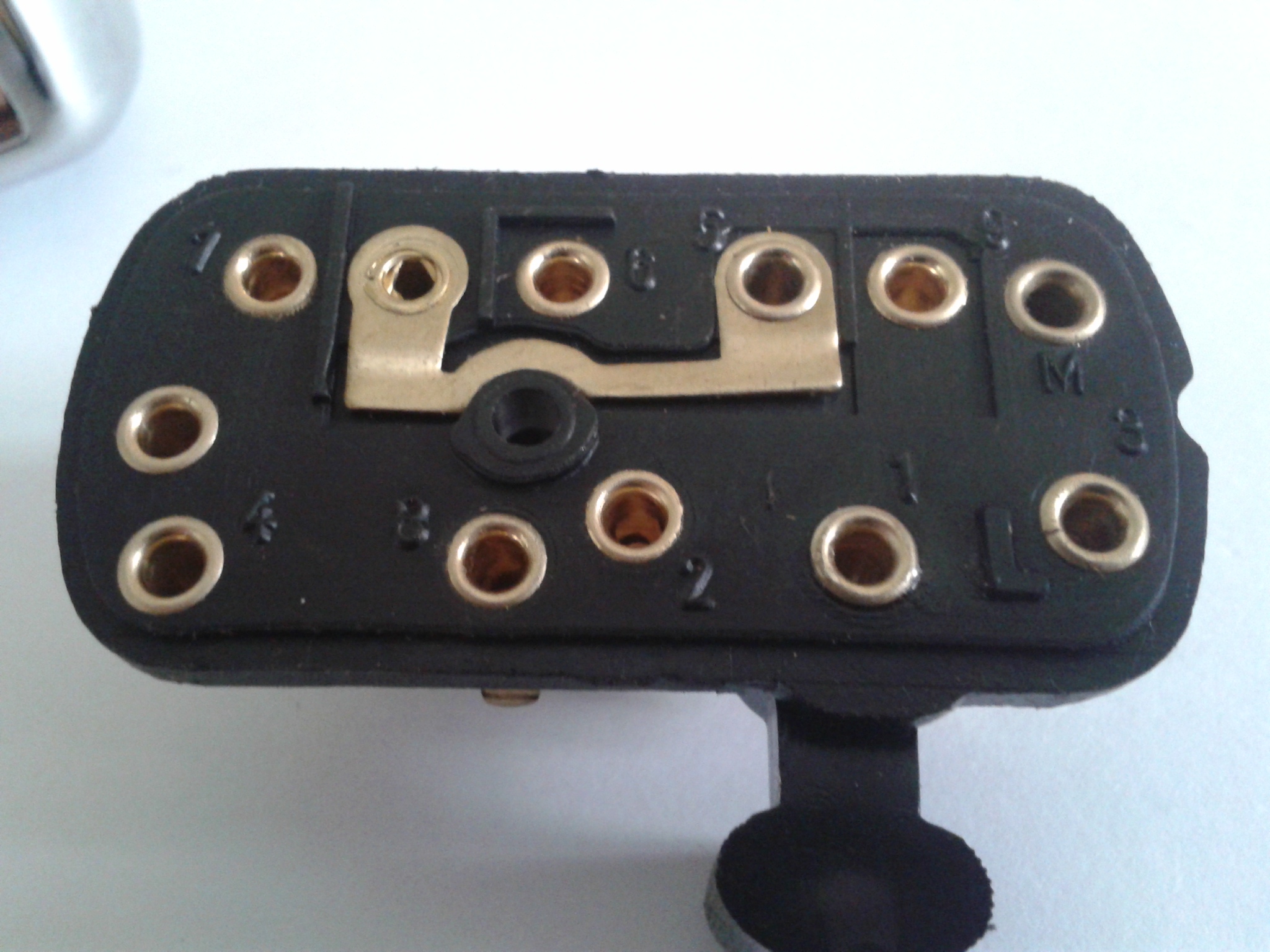

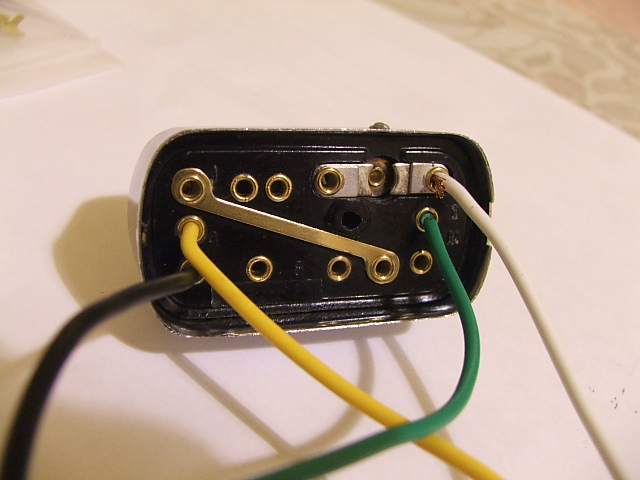

SWITCH (KILL BUTTON ON FRONT)



WIRES FROM LOOM

2 AND 3 (L);YELLOW WIRE POWER IN

1;BLACK WIRE REAR LIGHT

2 AND 3 (L);YELLOW WIRE POWER IN

M;GREEN WIRE CUT OUT BUTTON

4;WHITE WIRE HORN EARTH

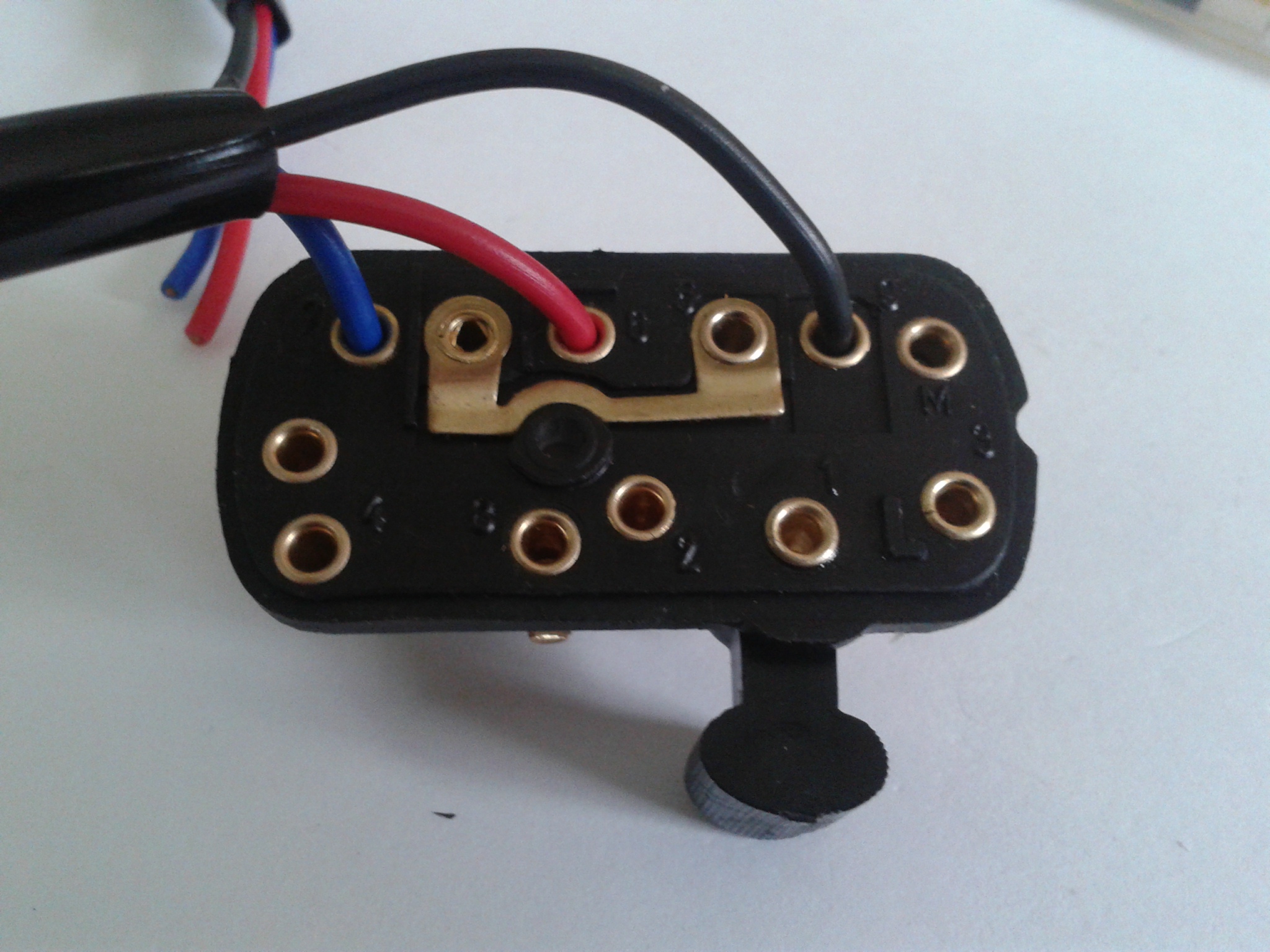

WIRES OUT FROM THE SWITCH TO BULB HOLDER

6;RED WIRE TO HIGH BEAM

7;BLUE WIRE TO HIGH BEAM

9;BLACK WIRE TO SIDE LIGHT

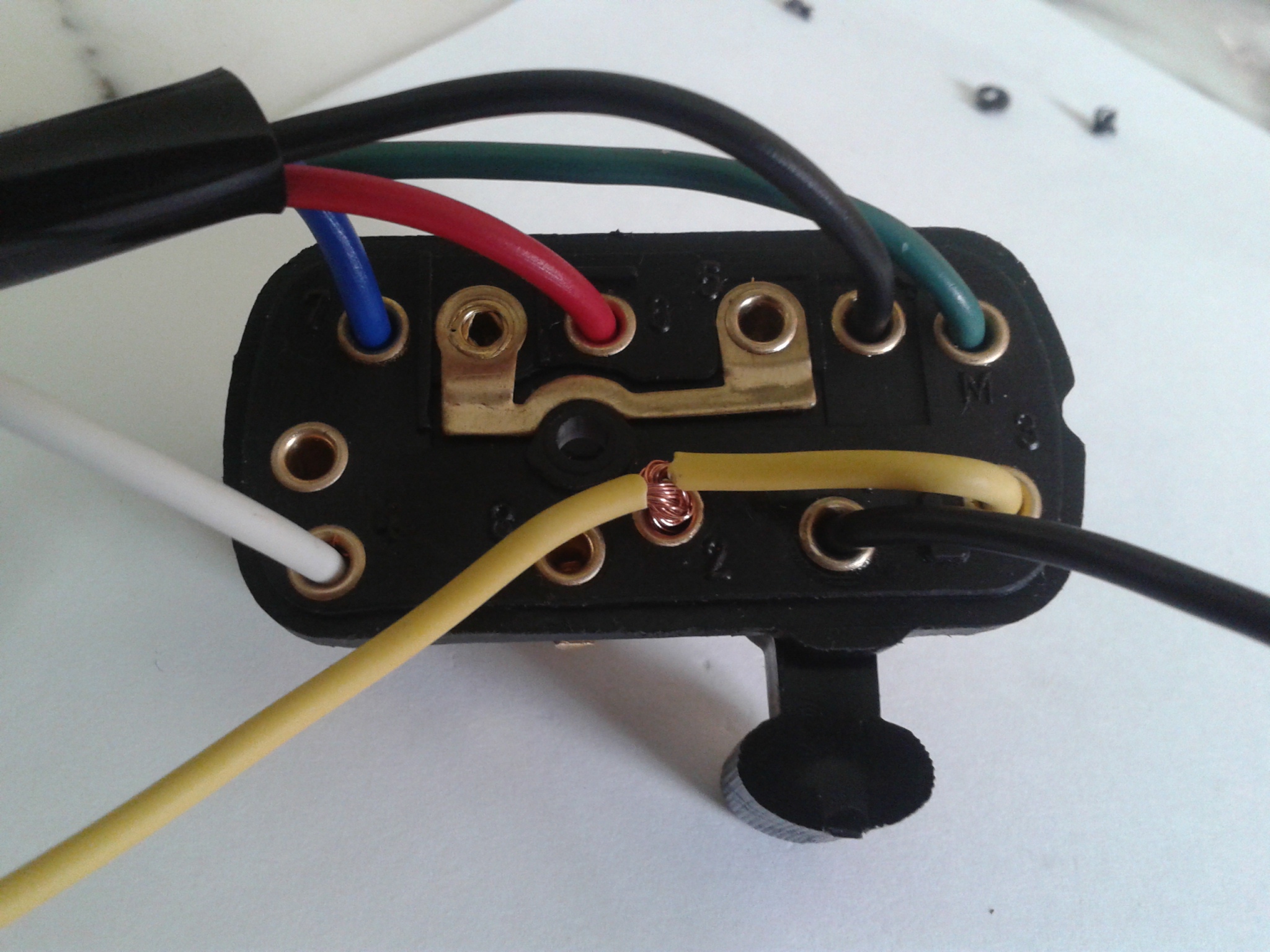

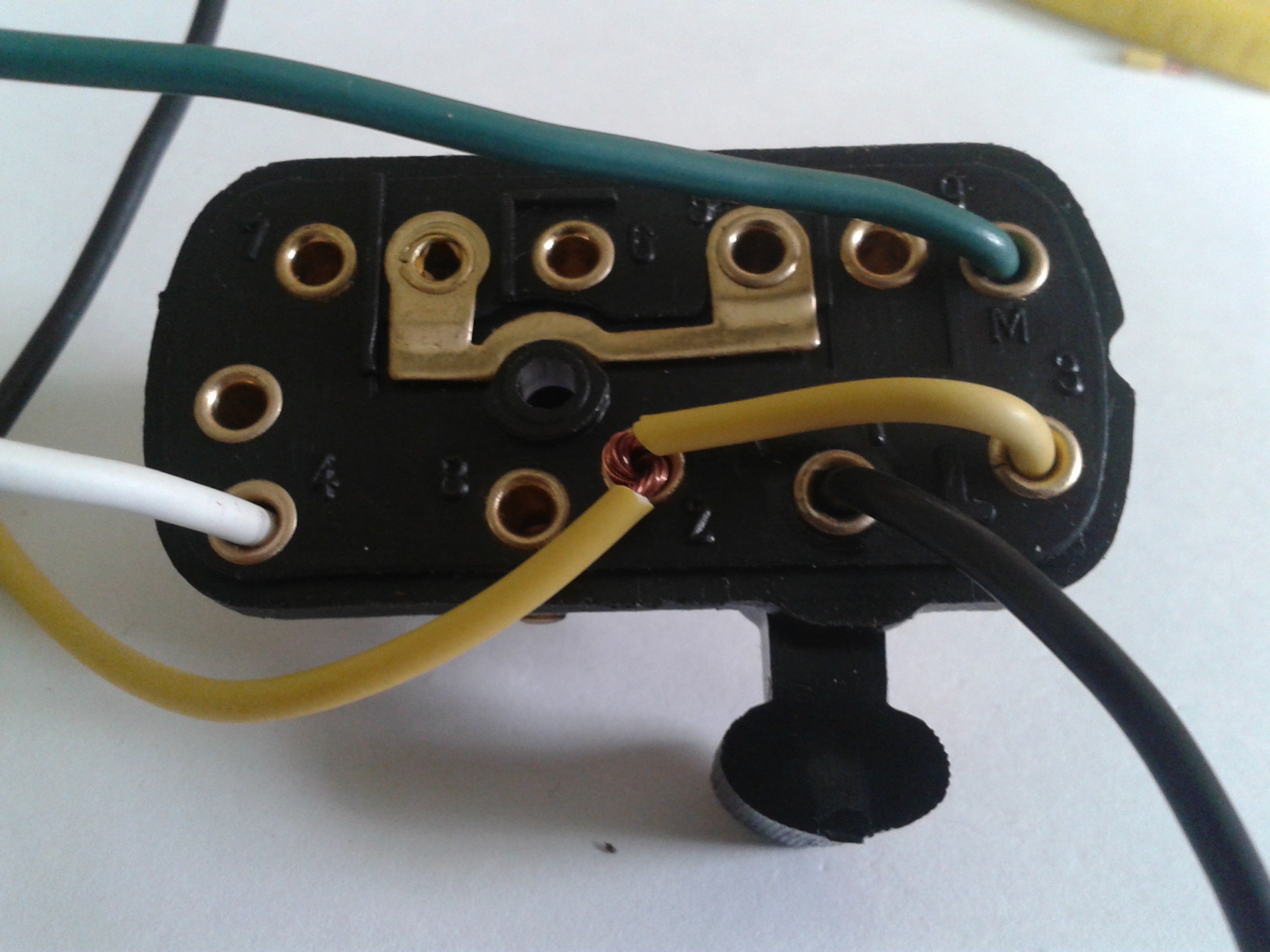

ALL THE WIRES IN THE SWITCH FROM LOOM AND TO BULB HOLDER

1;BLACK WIRE REAR LIGHT

2 AND 3 (L);YELLOW WIRE POWER IN

M;GREEN WIRE CUT OUT BUTTON

4;WHITE WIRE HORN EARTH

6;RED WIRE TO HIGH BEAM

7;BLUE WIRE TO HIGH BEAM

9;BLACK WIRE TO SIDE LIGHT

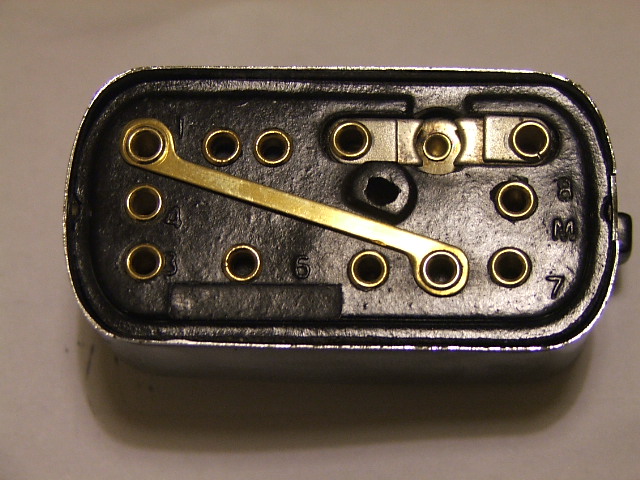

SWITCH (KILL BUTTON ON SIDE)

WIRES FROM LOOM



3;REAR LIGHT (BLACK)

4; POWER IN (YELLOW) FROM REGULATOR

8; CUT OUT (GREEN)

TOP RIGHT HAND SIDE (ABOVE 8) ;HORN OUT (WHITE)

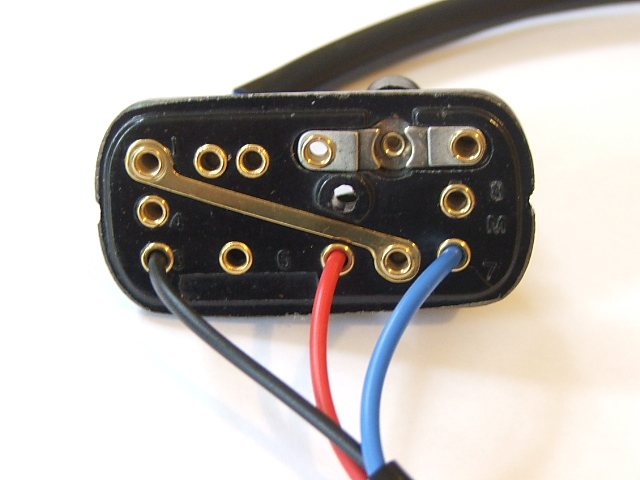

SWITCH WITH WIRES (OUT) GOING TO BULB HOLDER

3;SIDE LIGHT OUT  (BLACK)

6;LOW BEAM OUT (RED)

7;HIGH BEAM OUT (BLUE)

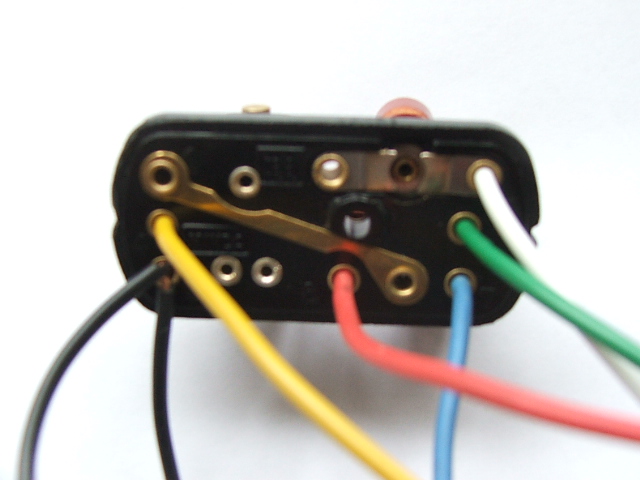

SWITCH WITH ALL WIRES ADDED TO BULB HOLDER AND LOOM



1;?

3;SIDE LIGHT AND REAR LIGHT (BLACK)

4; POWER IN (YELLOW)

6;LOW BEAM OUT (RED)

7;HIGH BEAM OUT (BLUE)

8; CUT OUT (GREEN)

TOP RIGHT HAND SIDE (ABOVE 8) ;HORN OUT (WHITE)





BULB HOLDER

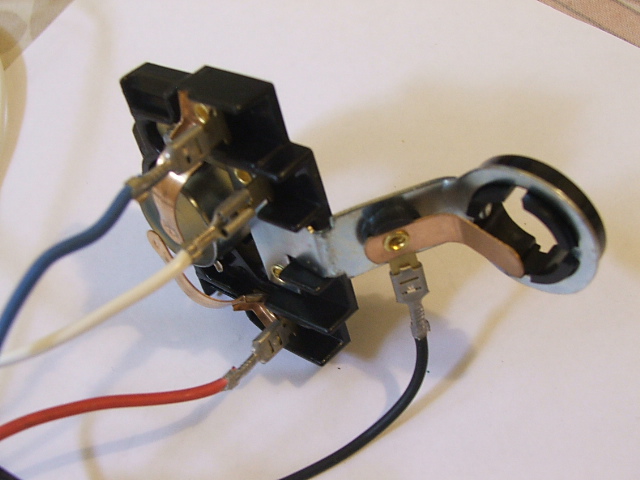

RALLY  BULB HOLDER

RED; LOW BEAM FROM SWITCH

BLUE; HIGH BEAM FROM SWITCH

BLACK; SIDE LIGHT FROM SWITCH

WHITE; EARTH TO FRAME OR HEADSET (NOT SWITCH)

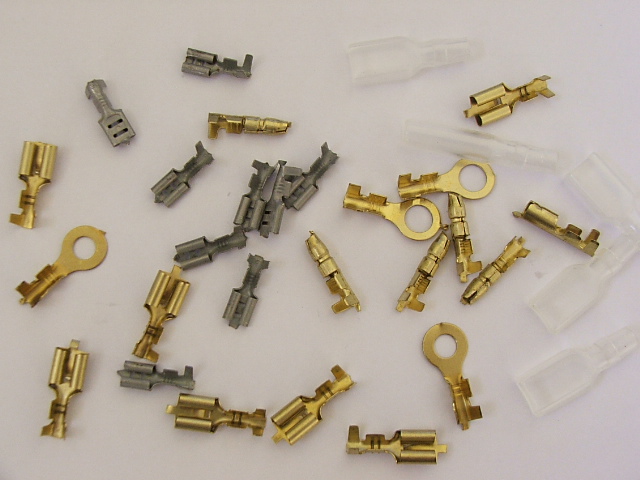

CONNECTERS

COMES WITH SPARE CONNECTERS SO ANY HEAD LIGHT AND REAR LIGHT CAN BE USED

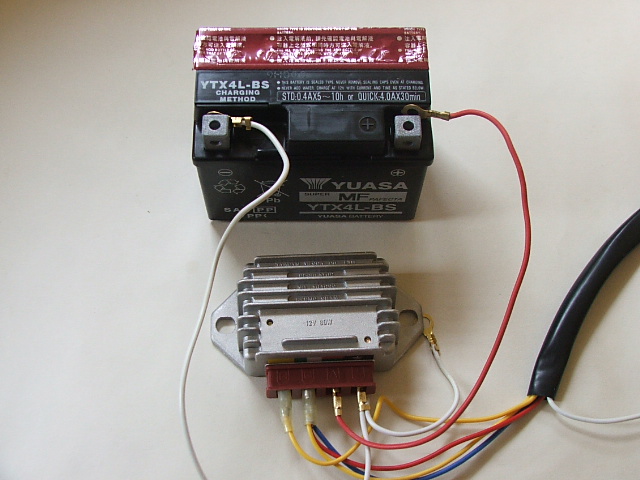

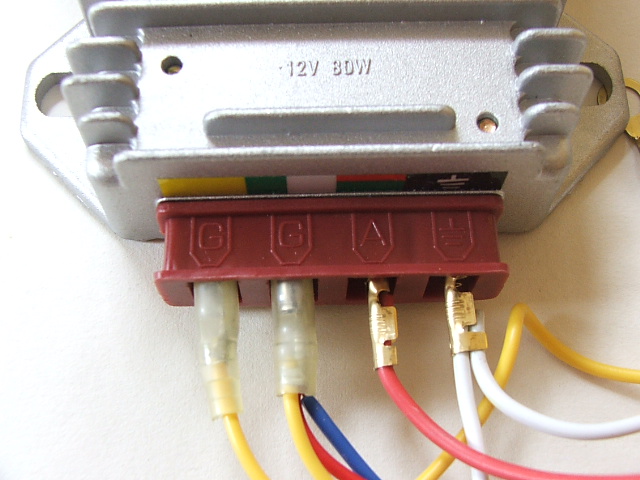

LOOM WITH 4 PIN REGULATOR FOR BATTERY

A 12v BATTERY CAN BE USED IF YOU HAVE A 4 PIN REGULATOR

ALL YOU HAVE TO DO IS ADD A WIRE (RED) TO THE BATTERY FROM "A" ON REGULATOR
